744053008
Manufacturer:
Wurth Electronics
Mfr.Part #:
744053008
Datasheet:
Description:

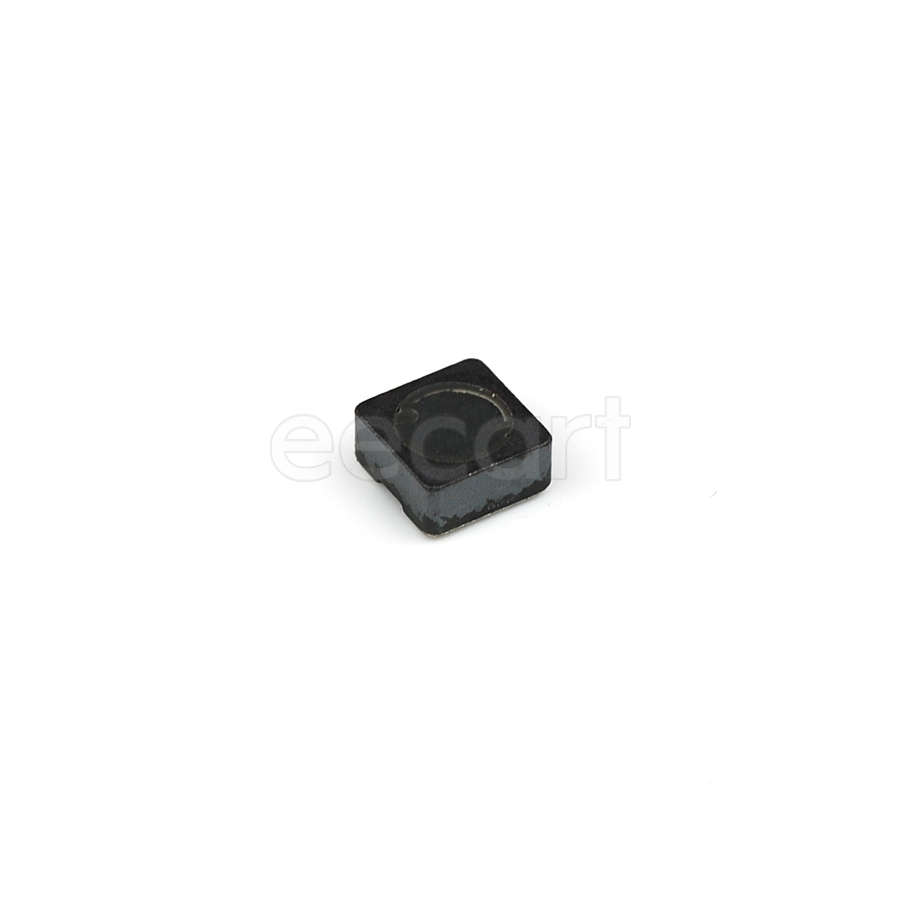

Fixed Inductors 2323(5858 Metric) SMD/SMT 8.2 µH 30 % 2.1 A 55 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 3 mm |
| Length | 5.8 mm |
| Width | 5.8 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.8 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Self Resonant Frequency | 28 MHz |
| Type | Wirewound |
| DC Resistance (DCR) | 55 mΩ |
| Shielding | Shielded |
| Inductance | 8.2 µH |
| Core Material | Ferrite |
| inductance tolerance | 30 % |
| Saturation Current | 1.6 A |
| Current Rating | 2.1 A |
Stock: 299
Distributors
pcbx
pcbxUnit Price$0.97034
Ext.Price$0.97034
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.97034 | $0.97034 |
| 10 | $0.92589 | $9.25890 |
| 25 | $0.90075 | $22.51875 |
| 50 | $0.87630 | $43.81500 |
| 100 | $0.80706 | $80.70600 |
| 300 | $0.65247 | $195.74100 |
| 500 | $0.52749 | $263.74500 |
